MARKET RESEARCH FROM AN ART TO A SCIENCE
Market forecasting has tended to rely on expert opinion rather than iteration of relevant factual data and formal modeling. The art of forecasting has been far from perfect in terms of accuracy, detail, and currency.
The McIlvaine approach has evolved over 25 years. A major step forward has been the combination of the Internet for easy access to millions of specific forecasts and the streamlining and structuring of the methods for determining the forecasts. This approach improves accuracy, provides greater details, and makes it possible to continually revise data
Here is an example of the system and its value. We have selected polymer sales in secondary municipal wastewater treatment plants in Taiwan. Polymerco is a hypothetical polymer supplier who sells some polymer in Taiwan but the amount is small. First of all Polymerco wants to know their percentage of the existing market. Next they would like to determine the longer term potential. Based on this knowledge they will then project sales for this country. They would continually evaluate revisions of this data and if changes exceed specified limits an “action trigger” would force re-evaluation of the campaign.
The McIlvaine online report Water and Wastewater Chemicals World Market not only provides the forecasts but also the factors behind the forecasts. Polymerco can select Taiwan, wastewater, and organic flocculants. As seen in Figure 1, Water and Wastewater Chemicals: Industry, Product and Country, the sales of flocculants will grow from $13.55 million in 2003 to over $24 million in 2010.
Water & Wastewater Chemical World Markets
INDUSTRY, SUBJECT, AND COUNTRY FORECAST

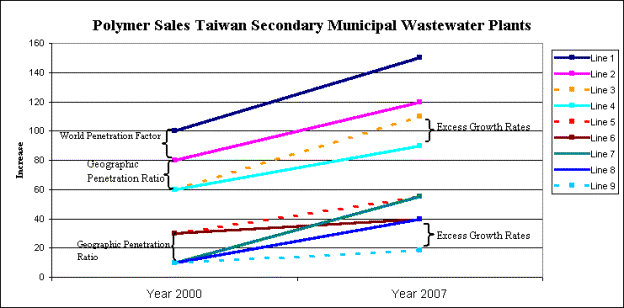

The report also provides the relationships between the forecast and the causative factors. In Figure 2 Polymer Sales Taiwan Secondary Municipal Wastewater Treatment Plants, the top line is “polymer sales based on sewage transport mgd. Since much of the present wastewater does not pass through secondary treatment plants, the quantity of polymer which would be needed if all sewage received secondary treatment is much larger than the amount which is based on actual and predicted secondary treatment capacity. This difference is the world penetration factor. McIlvaine is continually revising forecasts of sewage transport mgd, primary treatment mgd, and secondary treatment mgd for each country of the world.
The second line is “theoretical
polymer sales based on secondary mgd.” This is a ratio of world polymer
sales /world secondary mgd. However, in the base year (2000) actual polymer
sales in Taiwan are well below the world wide average. This difference is the geographical
Line 3 is the
polymer sales. This is the forecast for Taiwan for polymers but
is actually derived from line 4.
Line 4 is the actual
polymer sales in the base year growing at the industry growth rate.
But we predict that polymer sales will grow at a greater rate than
the mgd of secondary treatment. The difference is the excess growth rate.
Line 5 represents Polymerco
theoretical polymer sales in Taiwan growing at a rate to maintain a constant
market share. This line is based on the ratio of worldwide Polymerco polymer
sales divided by worldwide secondary mgd. This line is an indicator of sales
that would result if the same level of penetration was made in Taiwan as in the
rest of the world.
Line 6 represents Polymerco
theoretical polymer sales in Taiwan but growing at the secondary mgd growth rate
or industry growth rate
Line 7 is Polymerco minimum
potential (explanation at end)
Line 8 is Polymerco projected
sales. These are the sales revenues that Polymerco actually plans to obtain
and could be characterized as the quota or target etc.
Line 9 is Polymerco sales if
they grew only at the same rate as total polymer sales, in other words, if the market
share is held constant. The difference between line 8 and 9 is the excess
Line 7 is the Polymerco minimum
potential. This line represents Polymerco sales if Polymerco achieved the
same rate of success in Taiwan as in the world as a whole (polymer/secondary mgd)
and the company maintained its market share at this higher rate.
The value of this information
is greatly enhanced by the ease with which the numbers can be updated. Since
McIlvaine is continually changing projected secondary mgd numbers and since it
is easy to link all the numbers, these forecasts can be kept current
The value of making forecasts
based on the broader understanding of the market is considerable. If, for
example, Polymerco has a polymer which will make belt filter presses achieve 40%
dry solids instead of 20%, then the market for polymers in general and even
secondary treatment would change. Therefore, knowledge of the line 1 numbers
gives this broader perspective.
Most sales forecasts are based
on perceived industry growth rates without regard for the potential of the
“excess growth rate.” For example let’s say the industry is growing at 10%
and Polymerco’s sales grow at 11%. Management could view this as a successful
effort. But what if polymer sales are actually growing at 12%? Polymerco is
actually losing rather than gaining market share.
One legitimate question is
whether the cost of all these computations is so high as to be greater than the
value. The answer is that the money has already been spent to track the industry
data and work out the programs. The value is considerable so there is a high
rate of return on the investment.
Determines the Future Market
The total sales of a product equals the total of the purchases by the individual industry segments. The 2005 market for ball valves will equal the 2005 purchases by the power, wastewater, chemical, and other industries. These purchases in turn will be affected by the production growth rates in these industries between the present and 2005.
However, the purchase of a
product is also affected by other factors which cause product sales to rise or
fall at a different rate than the purchasing industries’ own production.
All these factors can be
identified and quantified and integrated into the following formulas:
sales of a product in an industry in a county = WPF x GIC or GIP x GPR. Future
sales = present sales x the industry growth rate x EGR.
These terms are defined as
World Penetration Factor (WPF)
This factor is the ratio of
specific product revenues in the base year divided by the potential revenues if
all potential purchasers utilized this product rather than an alternative.
Membrane systems are starting to compete with sand filters in municipal drinking
water plants. The ratio of membrane system sales for drinking water in the base
year divided by the sales of all filters for drinking water plants provides the
WPF. The potential is measured in product revenues per unit of production. In
semiconductors this could be wafer starts, in power it could be megawatts, and
in pharmaceutical it could be production revenues. In wastewater it is millions
of gallons per day. If there are 1,000 mgd of new secondary treatment plants but
only 200 mgd will use belt filter presses, then the penetration rate is only 20
percent of belt filter presses.
Geographical Industry Capital Factor (GIC)
This factor is the ratio of the individual country capital investment in an industry in a present or future year divided by the world industry capital investment in the base year. So if the capital investment in the pharmaceutical industry in Taiwan in 2005 is $10 billion and the world
investment in 2000 is $200 billion then the GICIF is 0.05. This ratio is often based on some value other than revenue. In the power industry this is usually megawatts of new construction. In fact it is typically megawatts of coal-fired boilers or megawatts of combined cycle gas turbines. There are even values which are synthesized to provide maximum utility. Wet path megawatts are an example. It combines all the megawatts of new power plant types in such a manner that the resultant values are directly proportional to revenues for valve, pump and certain other products used in the power industry.
Examples in other industries
are wafer starts per month (semiconductor industry), tons per day of refuse
burning capacity (municipal incinerators) and barrels per day of new capacity
(oil refining industry). Municipal wastewater treatment plant expenditures can
be based on additional numbers of people served. However, providing separate
values in millions of gallons per day for sewage transport, primary treatment,
and secondary treatment provides much more useful tools.
Geographical Industry Production Factor (GIP)
This factor is the ratio of the individual country production revenues in an industry in a present or future year divided by the world industry production revenues in the base year. So if the semiconductor production revenues are $43.3 billion in Taiwan in 2005 and world semiconductor revenues in 2000 were $204 billion, then the GIP is 0.21. This ratio is often based on some value other than production revenues. Megawatts, wafer starts, millions of gallons per day are all utilized as per the explanation above under GIC.
Penetration Ratio (GPR)
The market for a product may not be distributed geographically in the same percentages as the end user industry. But For many products there is no deviation between the industry activity and the revenue for the product being forecasted. If 30% of the production is one country then 30% of the specific product revenue will also be in that country. Any potential for deviation is lessened by the criteria used to determine the industry shares. For example instead of dividing the world power industry by the simple megawatts of new construction or installed capacity, more specific divisions are used such as combined cycle gas turbines, or an even more specific "wet path megawatts".
In some cases the end user segmentation does not precisely fit the distribution of product revenues. The two most common reasons are regulations and product bias. Pollution control equipment revenue is typically driven by regulations. In one country 100% of the new equipment
will be fitted with back end air pollution control equipment and in another none of the equipment will be required. An example of product bias is in minienvironments for semiconductor plants. The Taiwanese jumped on this trend while the U.S. and others stayed with the traditional ballroom cleanrooms.
The penetration ratio is actual product distribution divided by the industry distribution. So if 30% of the pharmaceutical production revenue is generated in the U.S. but 60% of the product revenue in the base year is generated in the U.S., then the U.S. penetration ratio is 2.0. If the
pharmaceutical production revenue in a small country is 5% but only 3% of the product was sold there in the base year then the penetration ratio is 0.6. The penetration ratio is only useful in determining the base year product revenues is specific countries or regions. It is obviously 1.0 for the world. Also, the market in future years beyond the base year is determined by the combination of industry and product growth rates.
The penetration ratio concept can also be used to determine the future market for a specific proprietary product. The same ratio of present product sales in each country to industry revenues provides the proprietary product penetration ratio. This is a measure of success for the proprietary product in each country.
Growth Rate (EGR)
This is the growth rate for the specific product revenue (SPR) in excess of the GIC or GIP. If the industry is growing at 6% and the product sales to that industry will grow at 10%/yr then the excess growth rate is 4% per year.
Use – Equipment
A product can be used as part
of a new capital investment. This in turn can be new capacity or replacement
capacity. Where capital investment is used directly as the unit of measure both
new capacity and replacement capacity are included. But where units such as
installed capacity and incremental increases are used it becomes more
complicated. For example, mgd might be increasing at 5% per year but if the
product life is only ten years then replacement is 10% of installed mgd. Total
equipment purchases for 15% of the installed mgd are needed. (Note that this
value representing 15% of installed mgd will increase 5% per year.) New capacity
is the incremental increase in mgd each year. But some plants are being retired.
So specific product revenue must take into account both new capacity and
McIlvaine industry forecast
date is generally provided in two forms – new capacity and total capacity.
Capital equipment purchases are a combination of incremental capacity additions
and capacity additions that are replacements (equal to retirements). In some
cases, capital investment forecasts are available. This includes both new and
replacement capacity additions. For example, McIlvaine is continually updating
forecasts of semiconductor capital equipment orders. Sales of cleanrooms,
ultrapure water systems, and etching scrubbers will rise and fall proportionally
to semi equipment orders.
In the pharmaceutical
industry, capital investment forecasts are not readily available and equipment
forecasts will need to be derived from production revenue forecasts. The
incremental capacity increase equals the production increase. The replacement
capacity value is derived as a percentage of total production.
So for every application in
McIlvaine forecasts there is a capital equipment chart in percentages with the
base year equaling 100%. There is also a consumables/replacement chart with the
base year equaling 100%. If the capital equipment chart is based on total
capital investment, then only this one chart is needed for equipment forecasts.
If the chart is based on incremental capacity increases, then both charts are
needed to determine equipment purchases.
|Base Year||Year 1||Year 2|
|Capital Investment $||1000||1100||1200|
|Production Increase $||30||50||70|
|Equipment (new capacity) $||3||5||7|
|Total production $||250||300||370|
|Equipment (replacement) $||5||6||7.4|
|Total Equipment $||8||11||14.4|
In Example 2 the equipment for
replacement includes new capacity offset by retirements as well as equipment
replacements of existing plants.
Equipment forecasts are based
on orders not startups. Some equipment is ordered three years before startup and
some closer to startup. Equipment order forecasts are different where the
interval between orders and startup is different. Therefore, multiple templates
(application charts are necessary). For example, if coal-fired boiler
installations are forecast at 4,000 MW in 2004 and 10,000 MW in 2005, 2002 FGD
system orders would be factor x 10,000 whereas CEM orders would be factor x
Purchases of consumables are
generally proportional to installed capacity or more accurately capacity in use.
Production revenues are equivalent to capacity in use. Therefore, most
consumable forecasts are derived from industry capacity in use or production
There are occasions where the
consumable purchases associated with capacity additions are significant enough
to warrant inclusion. This only occurs when products with a two or three year
life are considered consumables and when additions are very large compared to
Bags for coal-fired boilers
are an example. Bag life is three years with x
representing value of all installed bags. 0.33 x is the yearly replacement
value. But if in one year capacity increased by 33% the value of bags for new
plants would equal all the replacement bags.
Where consumables life is one week, it makes little difference whether capacity additions are 10% or 33%; yearly expenditures are still a function of the total capacity.
