Otter Tail Power Company
System images are shown by substance being moved.

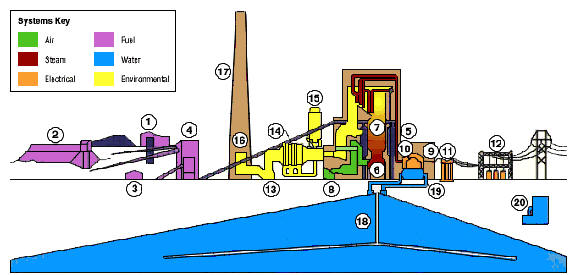

This model, based on our Big Stone Plant, explains the systems and processes required to generate electricity at coal-fired power plants.
If you'd like to learn more about a specific system or part of the power plant, click on the number or name from this list:
Fuel handling (1) Rotary dumper (2) Storage building (3) Alternate fuel-handling facility (4) Transfer house |
Furnace
(5) Silos (6) Cyclone furnaces (7) Boiler furnace (8) Forced-draft fans |
Electric generation (9) Turbine (10) Generator |
Electric transmission (11) Transformer (12) Substation |
Environmental equipment (13) Fans (14) Precipitator (15) Ash silo (16) Stack (17) Emission monitors |
Water handling (18) Cooling pond (19) Condenser (20) Brine concentrator |
